Technical details:
*no power supply included*
Dimensions: 170 x 355 x 355 mm (W x H x D)
Material: steel (body), plastic (front, lid)
Weight: approx.2.7 kg
Color: Black
Form factor: Micro-ATX, Mini-ITX
Fan possible:
1x 120 mm (front)
1x 120 mm (side part)
1x 80 mm (back)
Fan pre-installed:
1x 80 mm (rear; 1,800 rpm, 48 m³ / h, 21 dB (A))
Filter: power supply (removable)
Drive bays:
1x 5.25 inch (external)
1x 3.5 inch (external)
1x 2.5 inches (internal; bottom)
2x 2.5 inches or 1x 3.5 + 1x 2.5 inches (internal; side wall)
Power supply: 1x standard ATX (optional)
Expansion slots: 4
I / O panel:
1x USB 3.0 (internal connection)
2x USB 2.0 (internal connection)
1x per audio in / out
Maximum graphics card length: 320 mm
Maximum CPU cooler height: 145 mm
Product description:

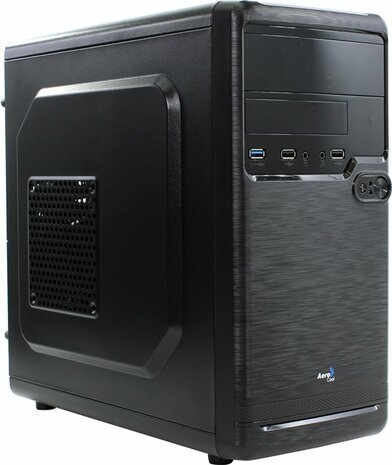

Qs182 is a chic micro ATX case that impresses with its matte surface and subtle design. At approx. 33.5 cm in height and length, it is also a rather small housing, which also only weighs 2.7 kg and, in conjunction with the chic design, also looks great in a living room.

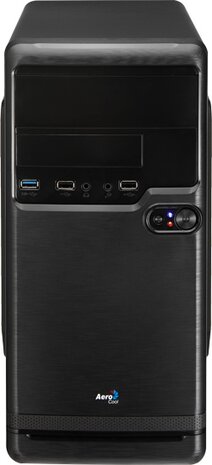

The small mini tower is made of 0.5 mm thick SECC steel and finished on the front and lid with plastic. The front houses a drive panel behind which a 5.25-inch slot is hidden as well as another for a floppy disk drive. There is also an I / O panel with a USB 3.0 port, two USB 2.0 ports, two audio sockets and a power and reset switch.

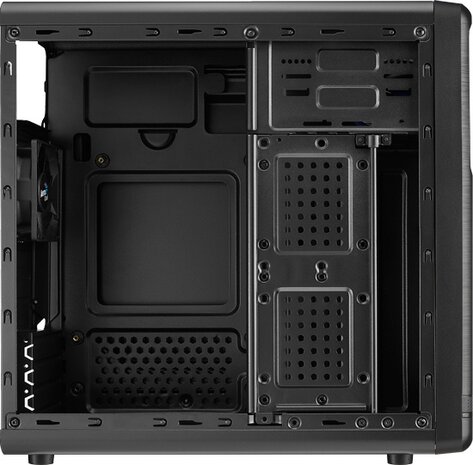

In the completely black interior of the Qs-182 there is space for motherboards in Micro-ATX and Mini-ITX format as well as some other components. For example, a 3.5-inch and a 2.5-inch drive can be installed in the Qs-182 as standard.

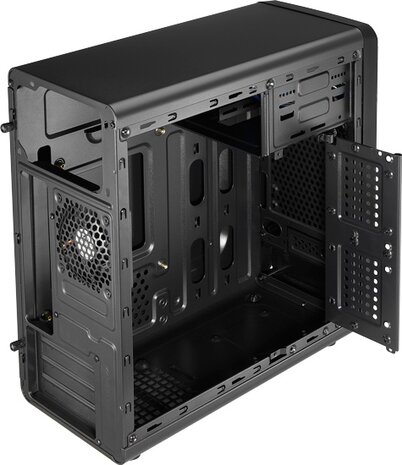

The 3.5-inch drive can also be an external one, since the slot sits behind a bezel that can be removed. In addition, either two additional 2.5-inch drives or a 2.5-inch and a 3.5-inch drive can be installed on the fold-out small side wall.
If you don't use a 5.25-inch drive, you can also install a 3.5-inch drive instead. So that the drives generate little or no vibration, the housing comes with rubber pads.

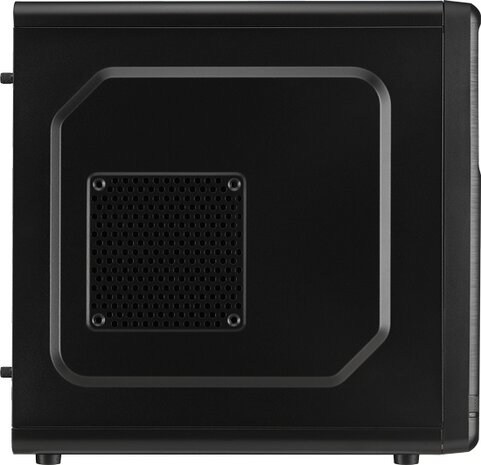

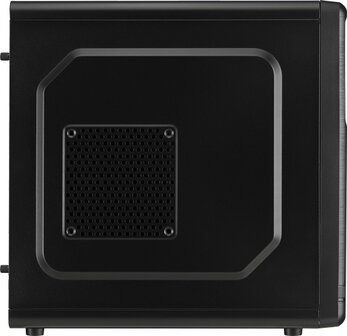

The housing can accommodate four expansion cards. These may have a maximum length of 320 mm. A CPU cooler can at least have a height of 145 mm. Of course, there is also a cutout for mounting and maintenance of the CPU cooler in the side wall. A standard ATX power supply can be installed in the back of the case. There is a removable dust filter underneath.

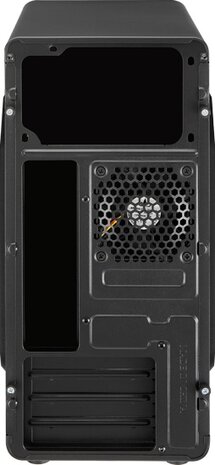

The case comes with a pre-installed 80mm fan in the back. For this purpose, a 120 mm fan can be installed in the side part and in the front. For optimal cable management, there are holes in the mainboard wall.
