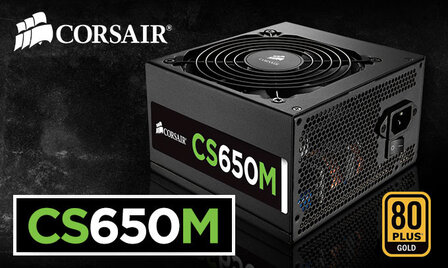

Corsair CS650M Power supply ( internal )

General

Device Type

Power supply - active Power Factor Correction (PFC) - internal

Specification Compliance

ATX12V 2.4/ EPS12V 2.92

Localisation

Europe

Power Device

Input Voltage

AC 100-240 V

Frequency Required

47 - 63 Hz

Power Output Connectors Details

1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector ¦ 4 x 8 pin PCI Express power with detachable 2 pin section

Output Voltage

+3.3, +5, ±12 V

Power Capacity

650 Watt

Output Current

+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 51 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A

Efficiency

92%

80 PLUS Certification

80 PLUS Gold

Miscellaneous

MTBF

150,000 hours

Features

Over voltage protection, overpower protection, temperature auto control, undervoltage protection, short-circuit protection

Compliant Standards

UL, TUV, BSMI, cUL, CB, CCC, FCC, RoHS, WEEE, ICES, KC, EAC, RCM

Manufacturer Warranty

Service & Support

3 years warranty

Service & Support Details

Limited warranty - 3 years

Dimensions & Weight

Width

15.6 cm

Depth

14 cm

Height

8.6 cm

Dimensions & Weight (Shipping)

Shipping Weight

2.327 kg
