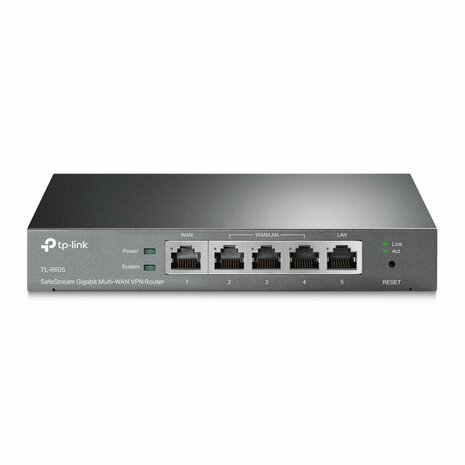

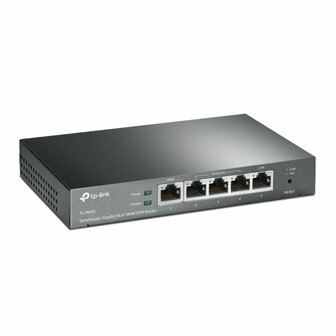

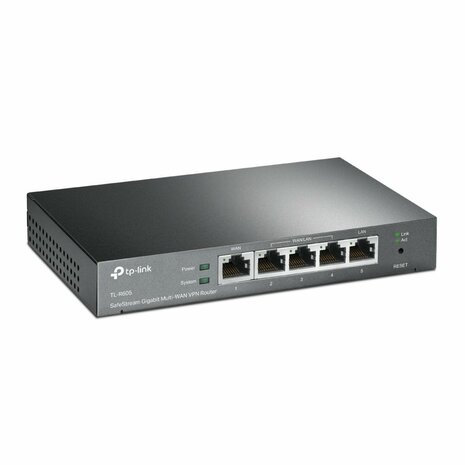

TP-LINK TL-R605 bedrade router 10 Gigabit Ethernet, 100 Giga

FUNCTIONALITEIT VAN DE HARDWARE
Standaarden en protocollen • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface • 1 Fixed Gigabit WAN Port
• 1 Fixed Gigabit LAN Port
• 3 Changeable Gigabit WAN/LAN Ports
Netwerkmedia • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Knop Reset Button

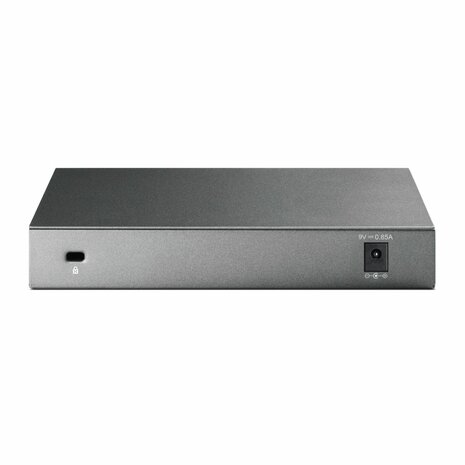

Uitgangsvermogen External 9V/0.85A DC Adapter
Flash SPI 16MB
Dram 128 MB
LED PWR, SYS, WAN, LAN
Afmetingen ( B x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
PRESTATIE
Concurrent Session 25,000
IPsec VPN Throughput 41.5 Mbps
BASISFUNCTIES
WAN verbindingstype • Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
MAC Kloon Modify WAN/LAN MAC Address†
DHCP • DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP*
• Multi-IP Interfaces*
IPv6 Yes
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing
• Policy Routing
Bandbreedte Controle • IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth
Load balancing • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection
NAT • One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Beveiliging • SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
Session Limit IP-based Session Limit
VPN
IPsec VPN • 20 IPsec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2*
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

*These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller
PPTP VPN • PPTP VPN Server
• 10 PPTP VPN Clients**
• 16 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• 10 L2TP VPN Clients**
• 16 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server*
• 10 OpenVPN Clients*△
• 16 OpenVPN Tunnels*
BEVEILIGING
Filtering WEB Group Filtering§
URL Filtering
Web Security§
ARP inspectie • Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§
Bescherming tegen aanvallen • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
Access Control Source/Destination IP Based Access Control
